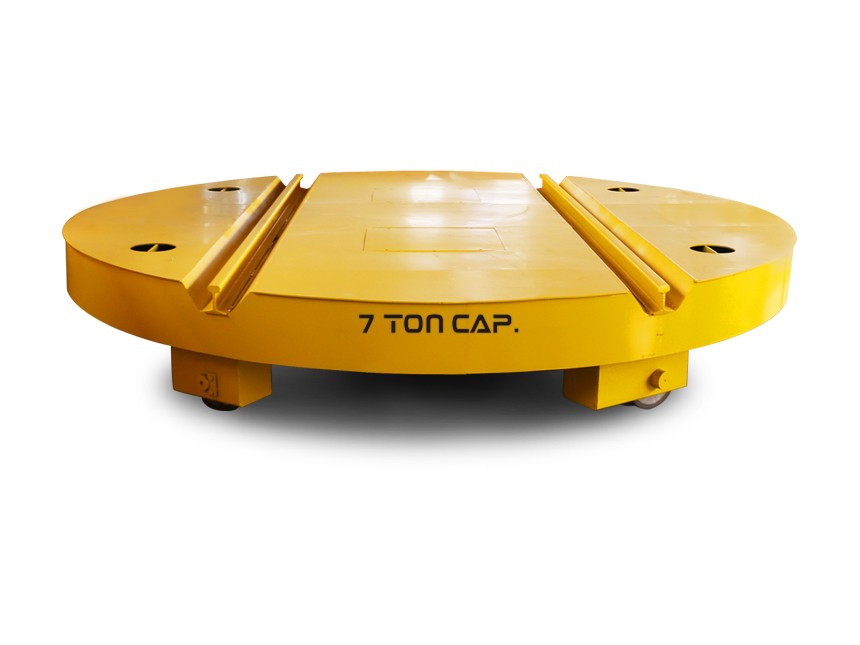

The Heavy-Duty Rail Transfer Turntable is engineered for high-load, high-precision rail-based material handling systems, enabling safe and accurate reorientation of heavy components between different rail directions.
It serves as a core node in rail-guided logistics lines where large loads, strict alignment tolerance, and continuous operation are required.
By integrating a reinforced structure and precision drive system, the turntable ensures smooth rotation and reliable positioning even under extreme load conditions, making it suitable for demanding industrial environments.
This turntable is specifically designed for heavy-duty rail transfer systems and can be integrated with:
Heavy-load RGV and rail-guided vehicles
Steel coil, mold, and large component transfer carts
Automated assembly and processing lines
Cross-track and switch-track rail layouts
It supports both standalone operation and synchronized control within PLC- or WMS-managed logistics systems, ensuring compatibility with modern automated factories.
In heavy manufacturing environments, material transfer systems often encounter:
Difficulties in rotating oversized or high-weight loads
Misalignment risks during direction changes
Structural deformation under long-term heavy-duty use
Safety concerns during manual positioning
The Heavy-Duty Rail Transfer Turntable effectively solves these problems by:
Providing stable rotation under high load capacity
Maintaining precise rail-to-rail alignment
Reducing mechanical stress through optimized load distribution
Enhancing operational safety via automated positioning and locking
These advantages significantly improve production efficiency while reducing maintenance and operational risks.
This solution is widely used in industries handling heavy and oversized materials, such as:
Steel mills and metal processing plants
Automotive body and chassis manufacturing
Wind energy and large equipment production
Mold, die, and tooling workshops
Heavy machinery and engineering facilities
Power generation and transformer manufacturing
| Parameter Item | Specification Range |
|---|---|
| Rated Load Capacity | 10 – 150 tons |
| Turntable Diameter | 2000 – 8000 mm |
| Rotation Angle | 90° / 180° / Multi-angle |
| Positioning Accuracy | ±0.5 mm |
| Drive System | Motor + planetary reducer |
| Bearing Type | Heavy-duty slewing bearing |
| Power Supply Mode | Busbar / Cable / Battery |
| Control System | PLC / Remote / Fully automated |
| Rail Alignment System | Automatic mechanical locking |
| Installation Method | Pit-mounted / Embedded |
To adapt to different operating requirements, optional configurations include:
Hydraulic or mechanical rail locking devices
Load monitoring and overload protection system
High-torque drive motors for extreme loads
Explosion-proof electrical components
Encoder-based positioning feedback
Integrated safety barriers and warning system
Custom surface materials for special environments
All components can be customized according to load, environment, and automation level.
